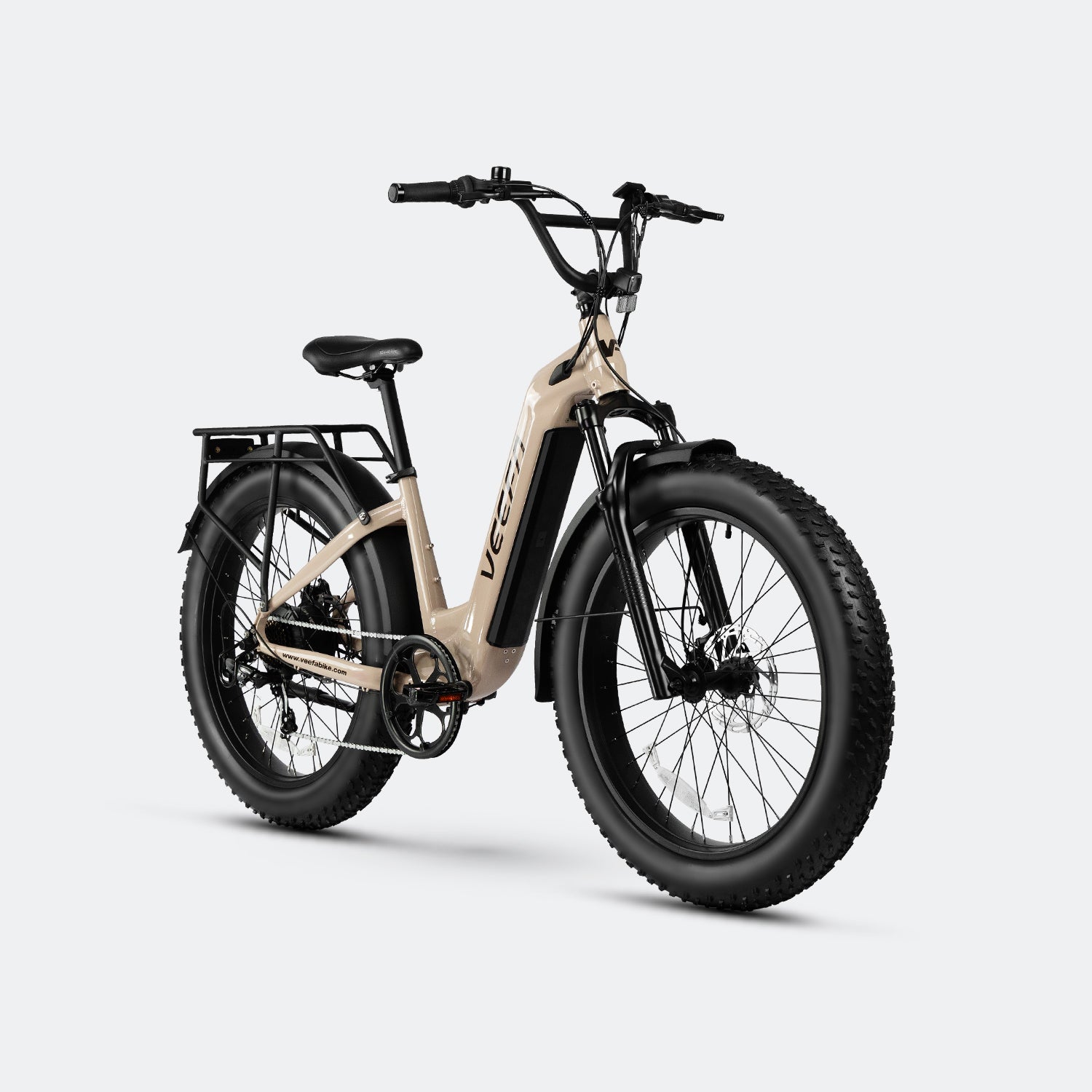

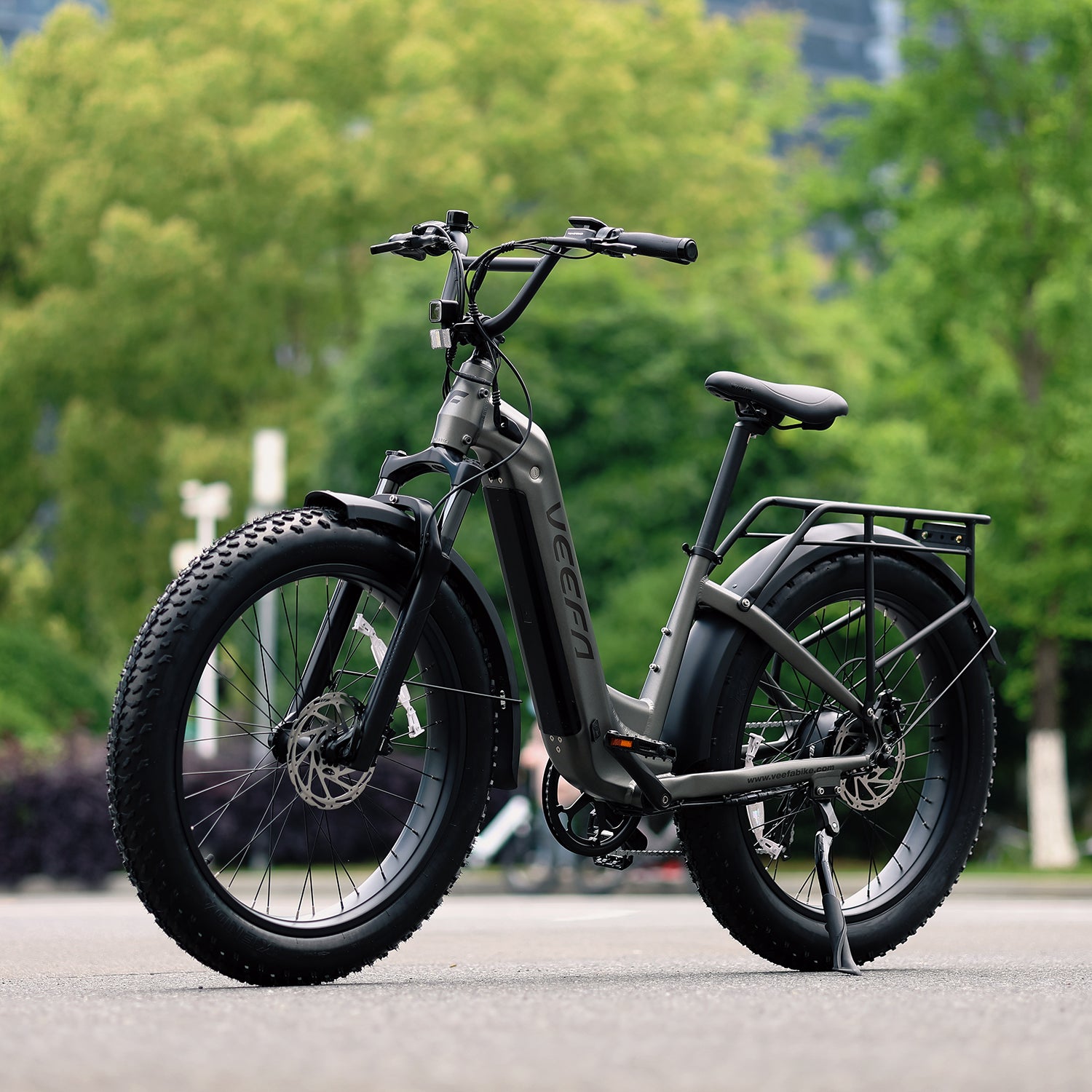

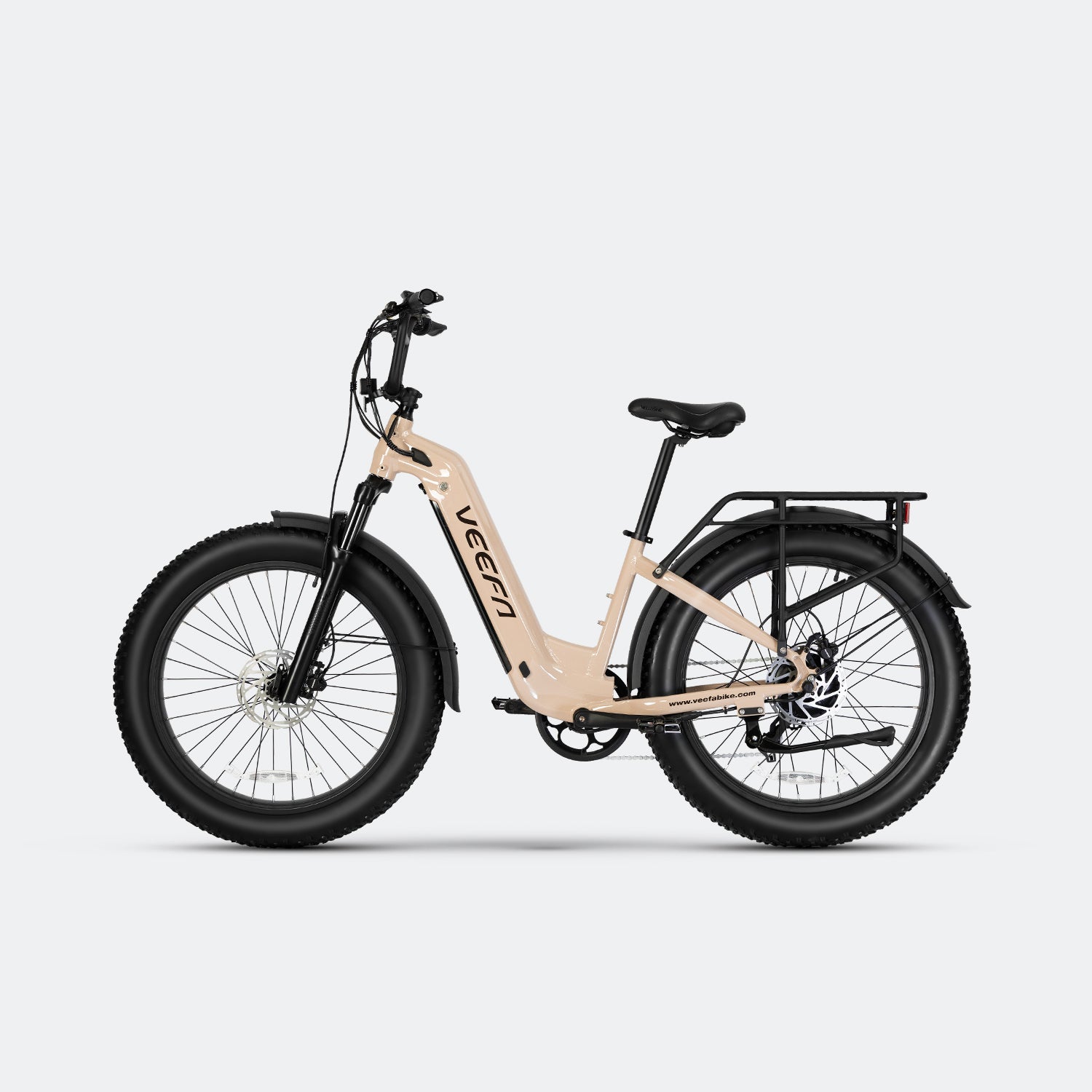

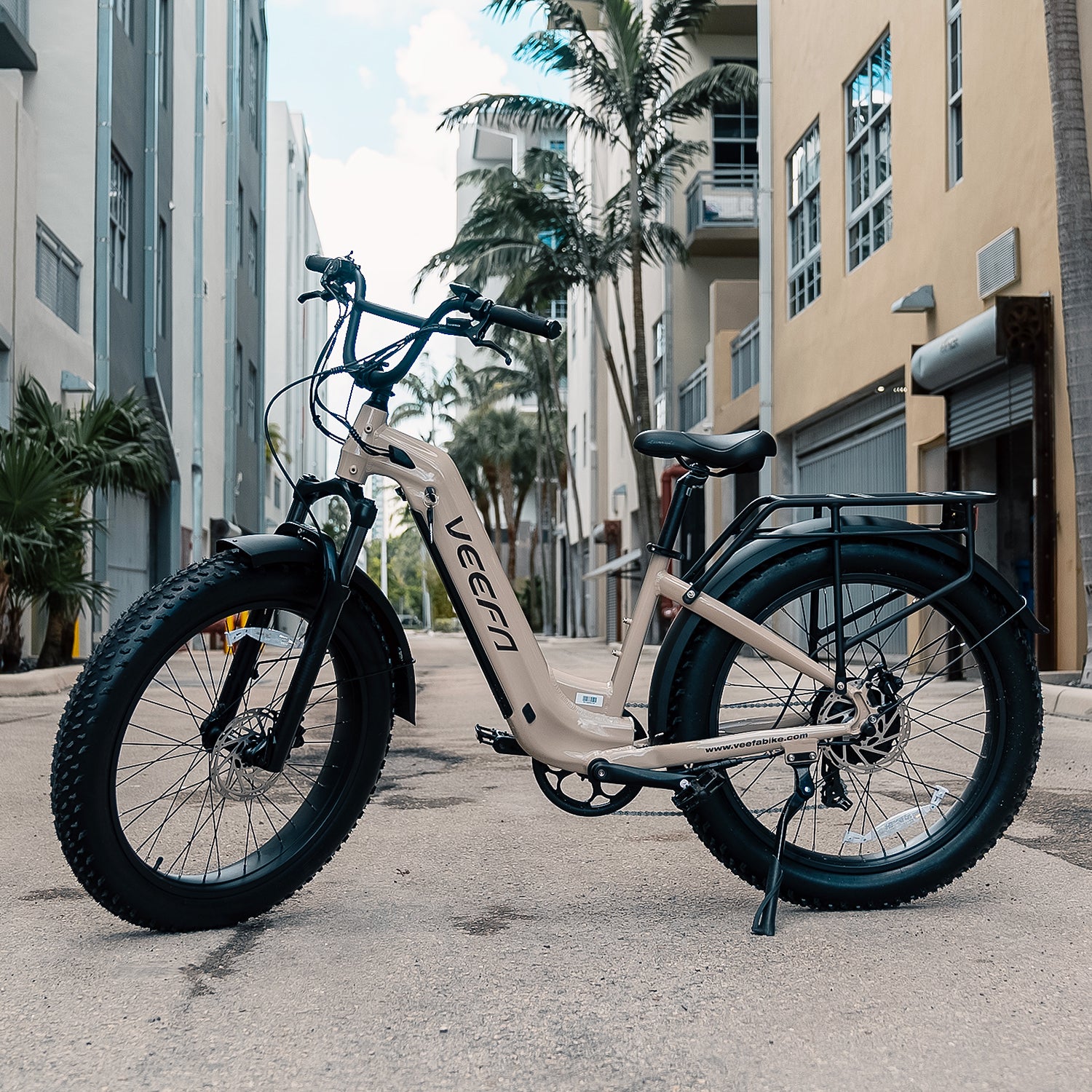

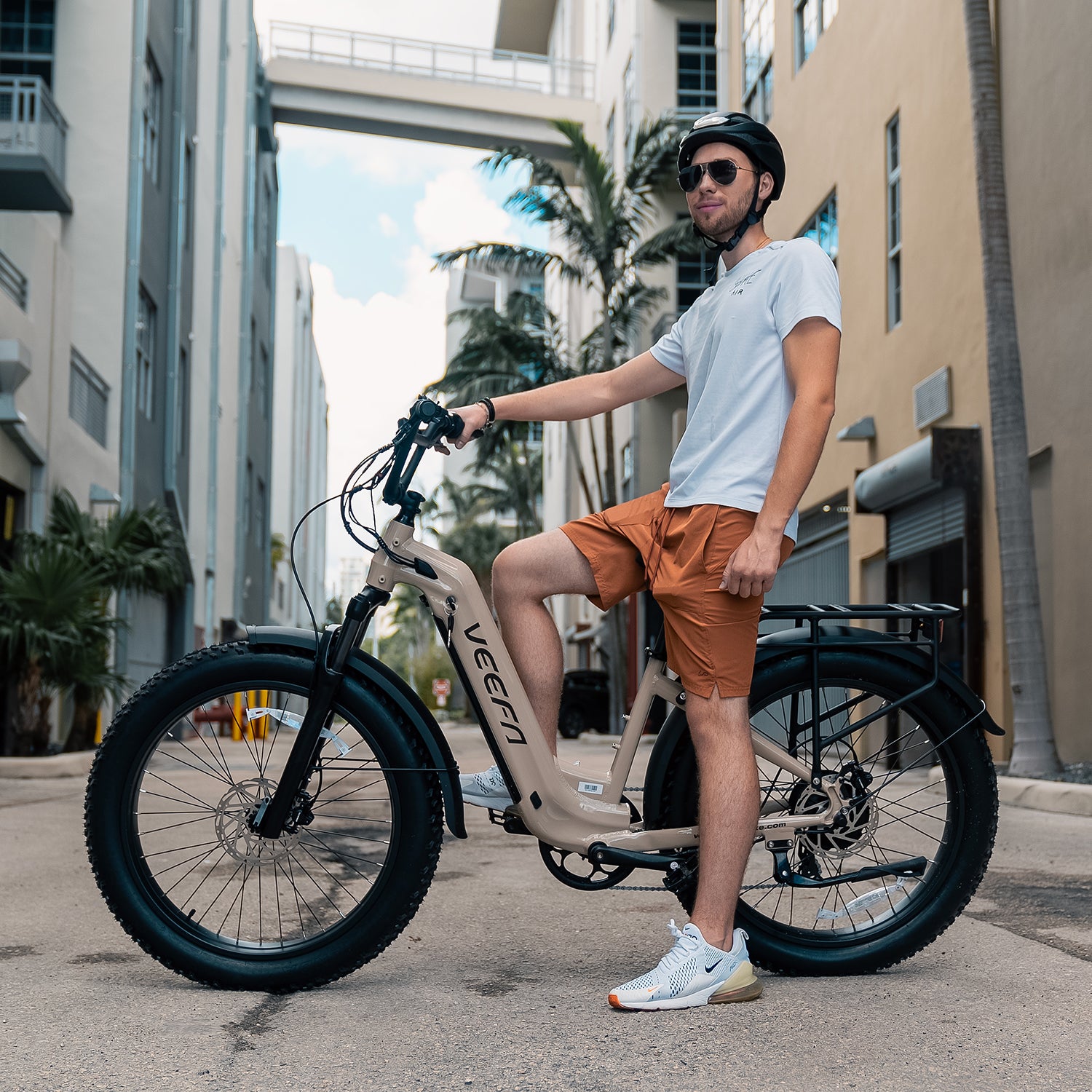

L1 26'' Step-Thru Fat Tire Electric bike
INCLUDING IN THE BOX
About the VEEFA L1 electric bike
The VEEFA L1 e-bike is a fat tire electric bike equipped with a powerful 750W motor. It offers a remarkable range of up to 60 miles on a single charge, allowing riders to explore their surroundings with ease and convenience.
Specs & Size
Frameset

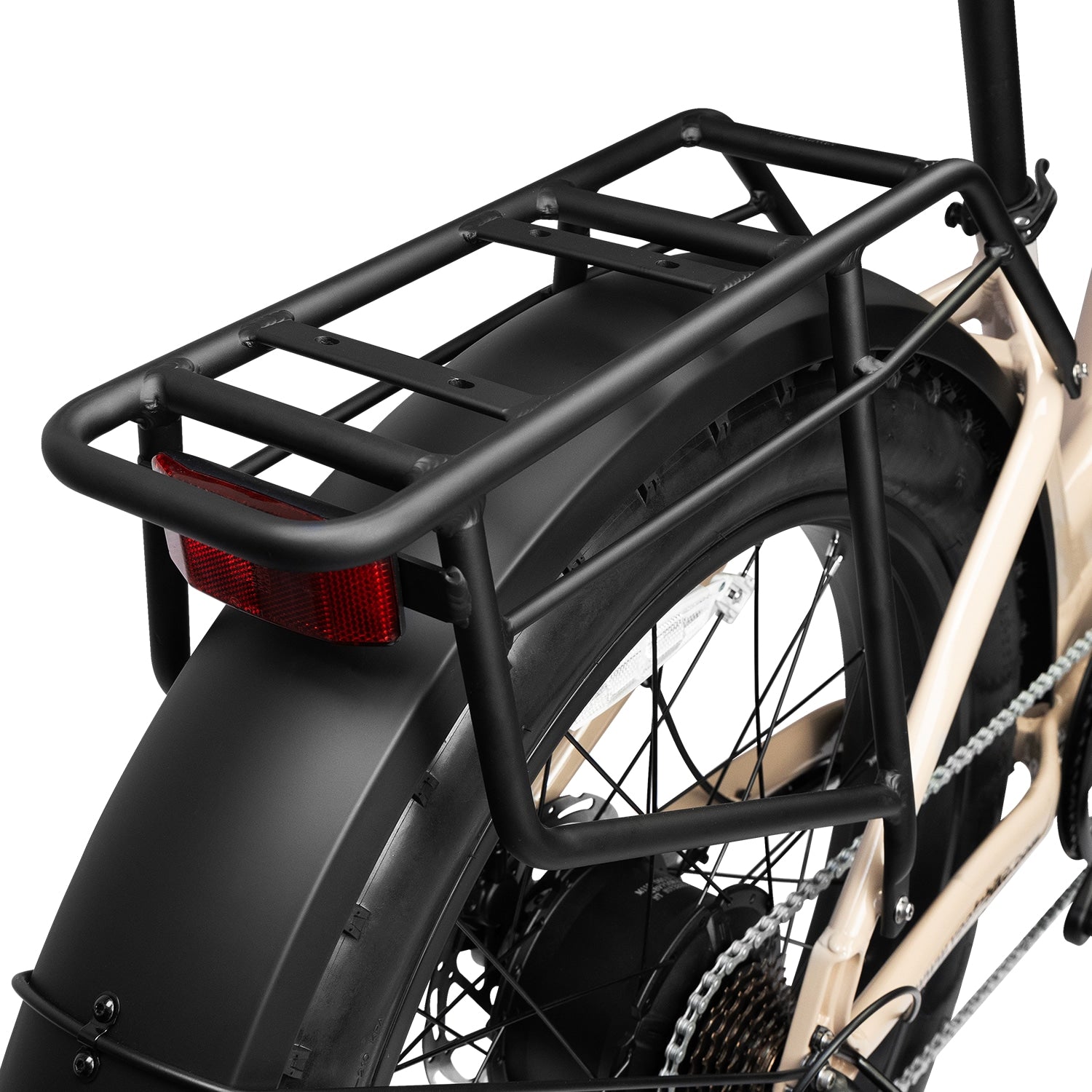

6061 Alluminum alloy with internal battery; rear rack and fenders included
Hydraulic front suspension fork with 60mm travel
Wheels
26"x 4.0" Tires
750W 48V Rear Motor, Peak 1000W, Torque 85NM
E-system & Drivetrain

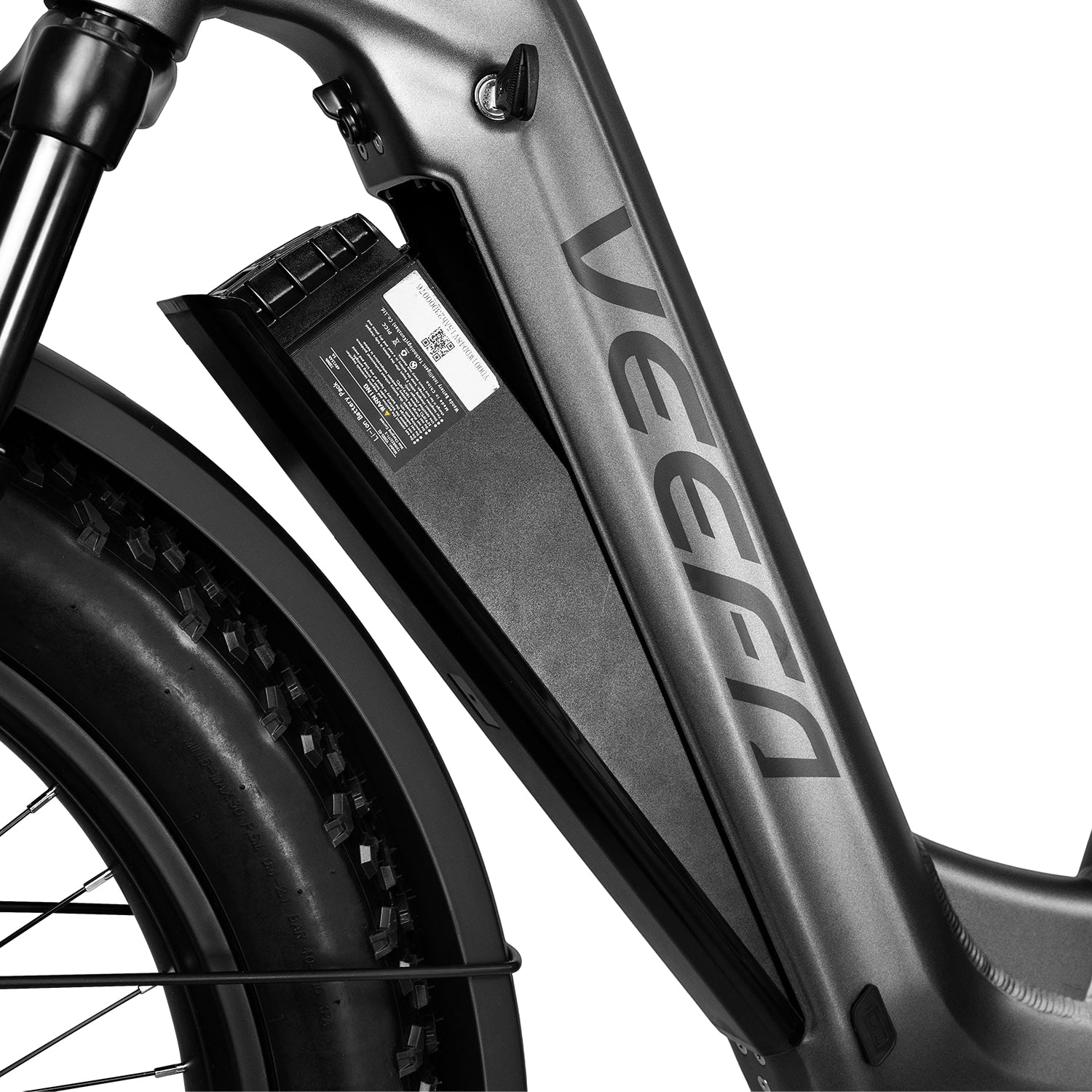

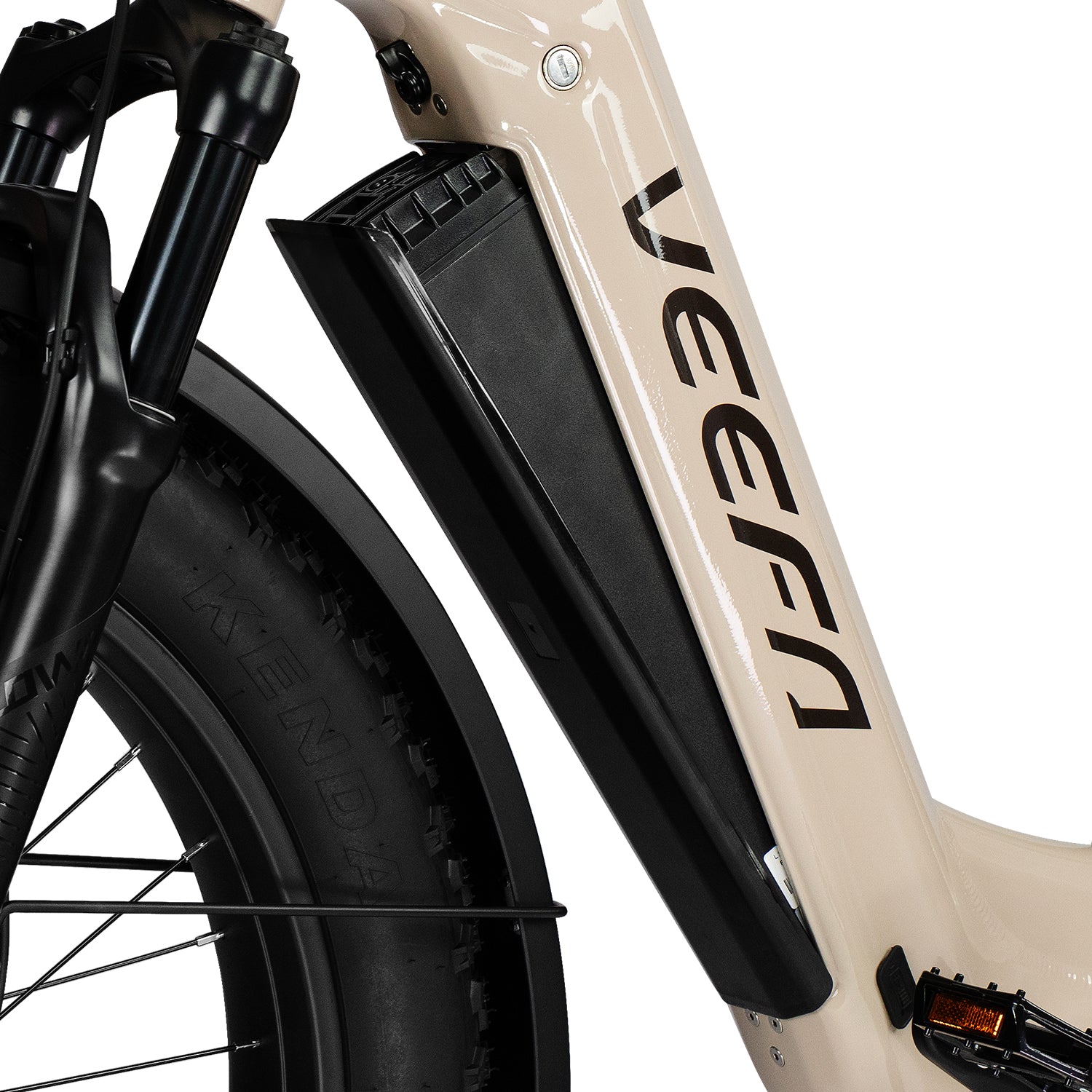

Removable Internal Lithium-ion Battery 48V 13Ah 624Wh，IP65

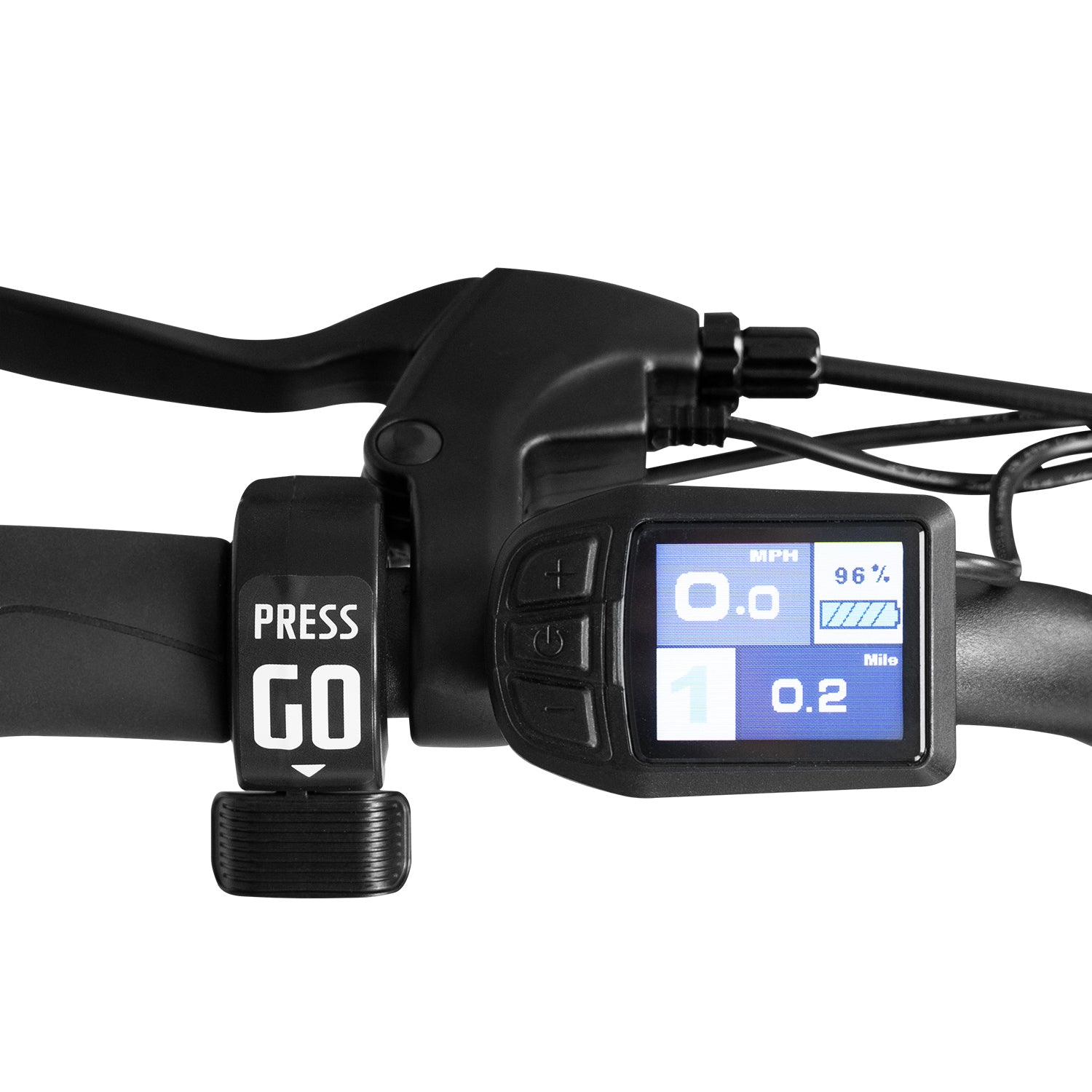

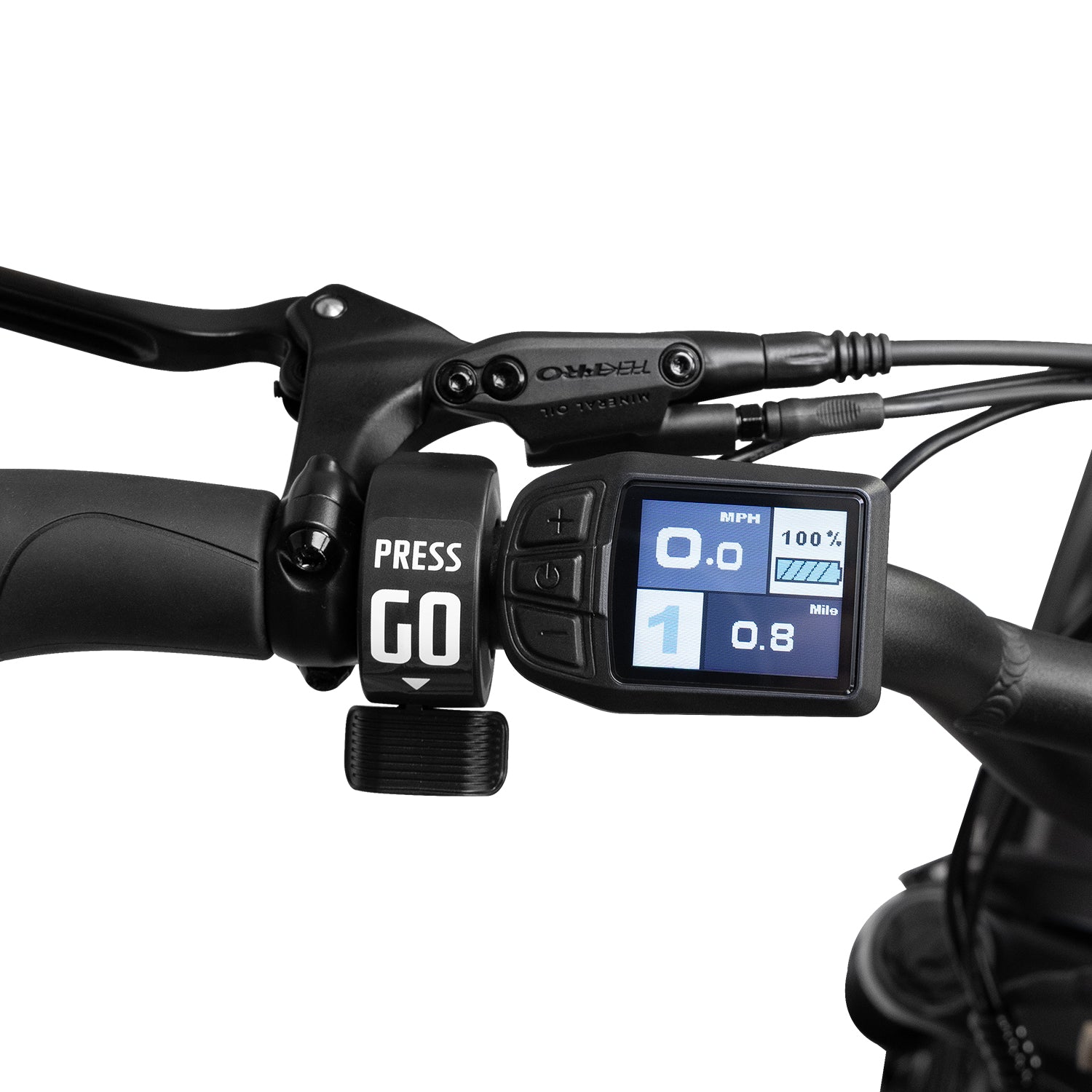

Smart LCD Display
5 Levels: 1/2/3/4/5
Shimano 7 speed
Front 48V LED Light 90 LUX
48V 2 Amp Charger, Approx. 7 Hour Charging
Components
Aluminum alloy, Max Load 55 lbs
Comfortable Wide Saddle
Stainless spokes，Front 13Gx 244/246mm, Rear 12Gx217/219mm

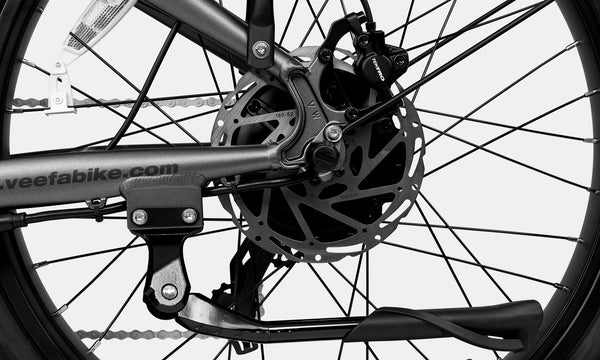

Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
Aluminum Ø31.8mm, Width 720mm

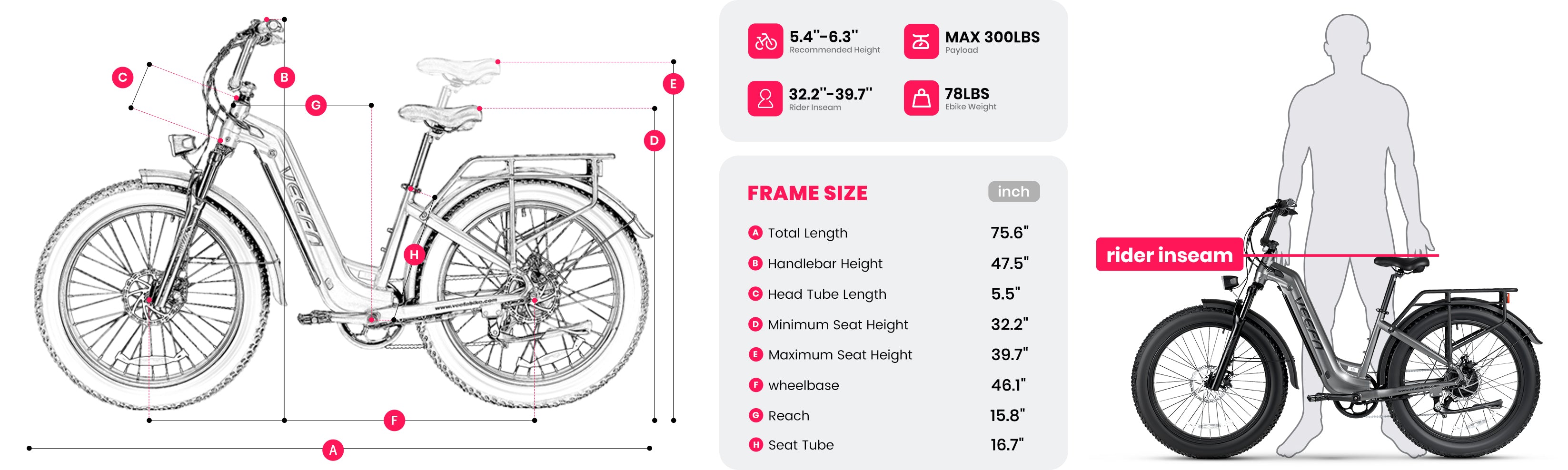

Weight & Dimensions
35.5KG (78.26LBS) (including battery)
46.2KG (101.85LBS)
4.309KG (9.5LBS)
1930*740*1210MM
Product Features

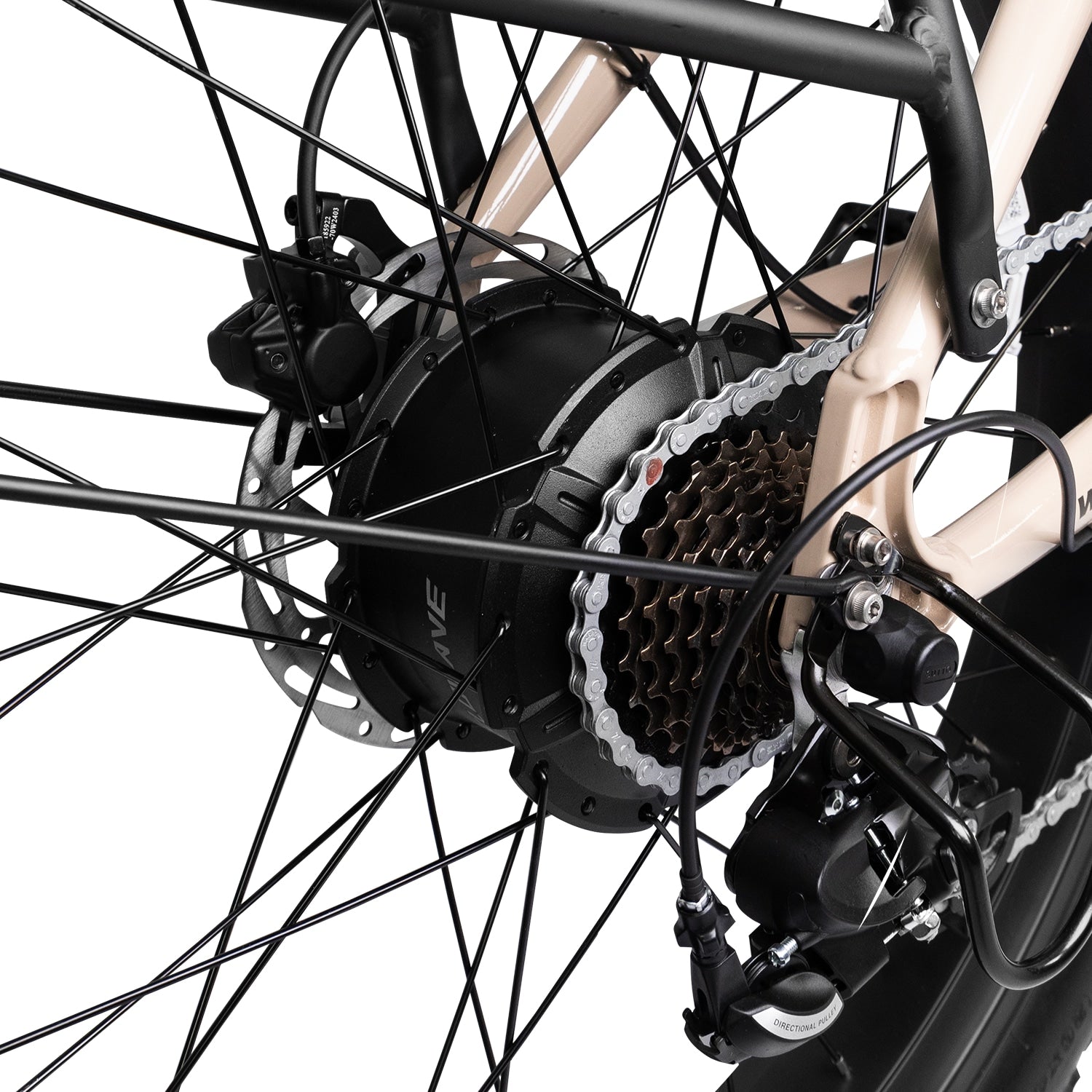

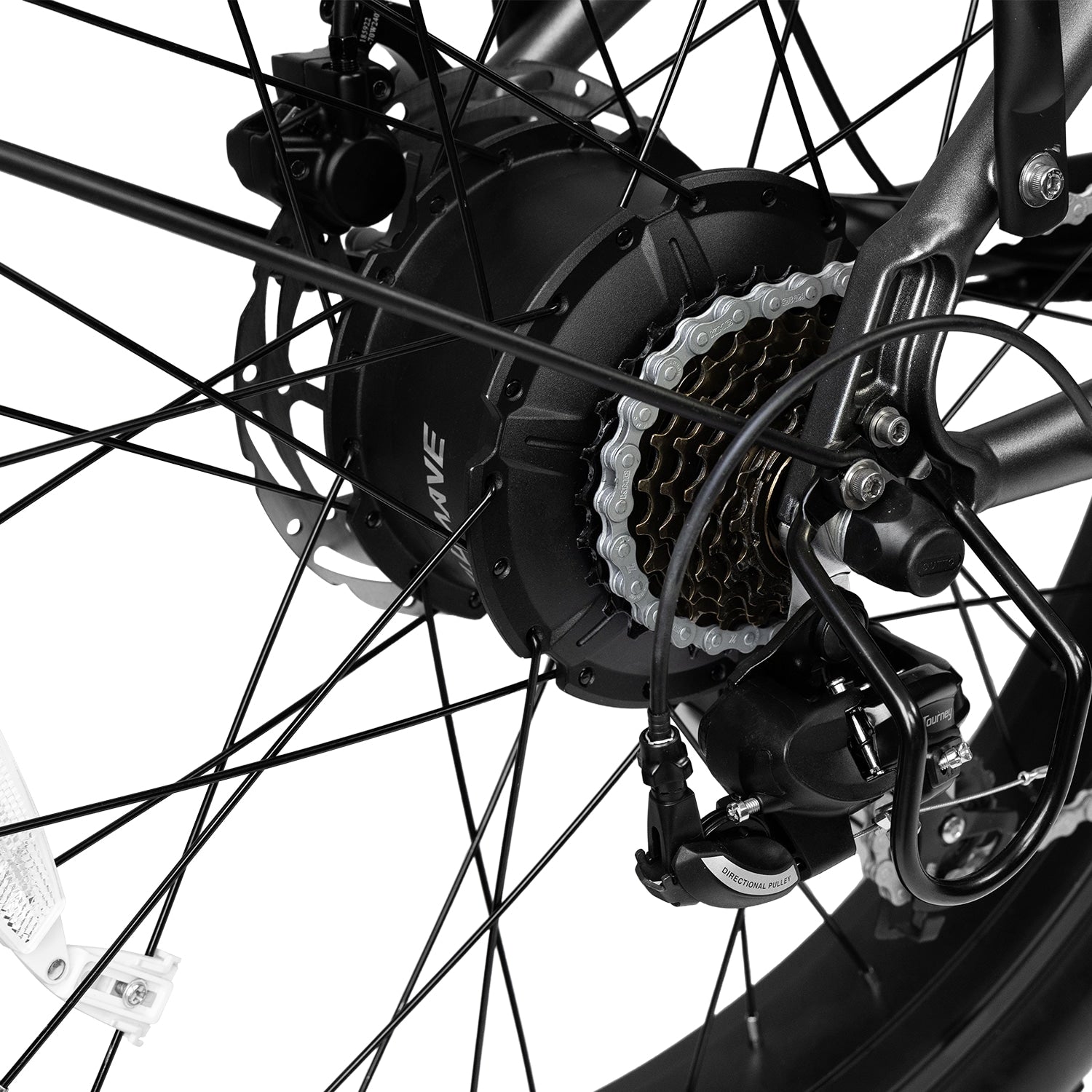

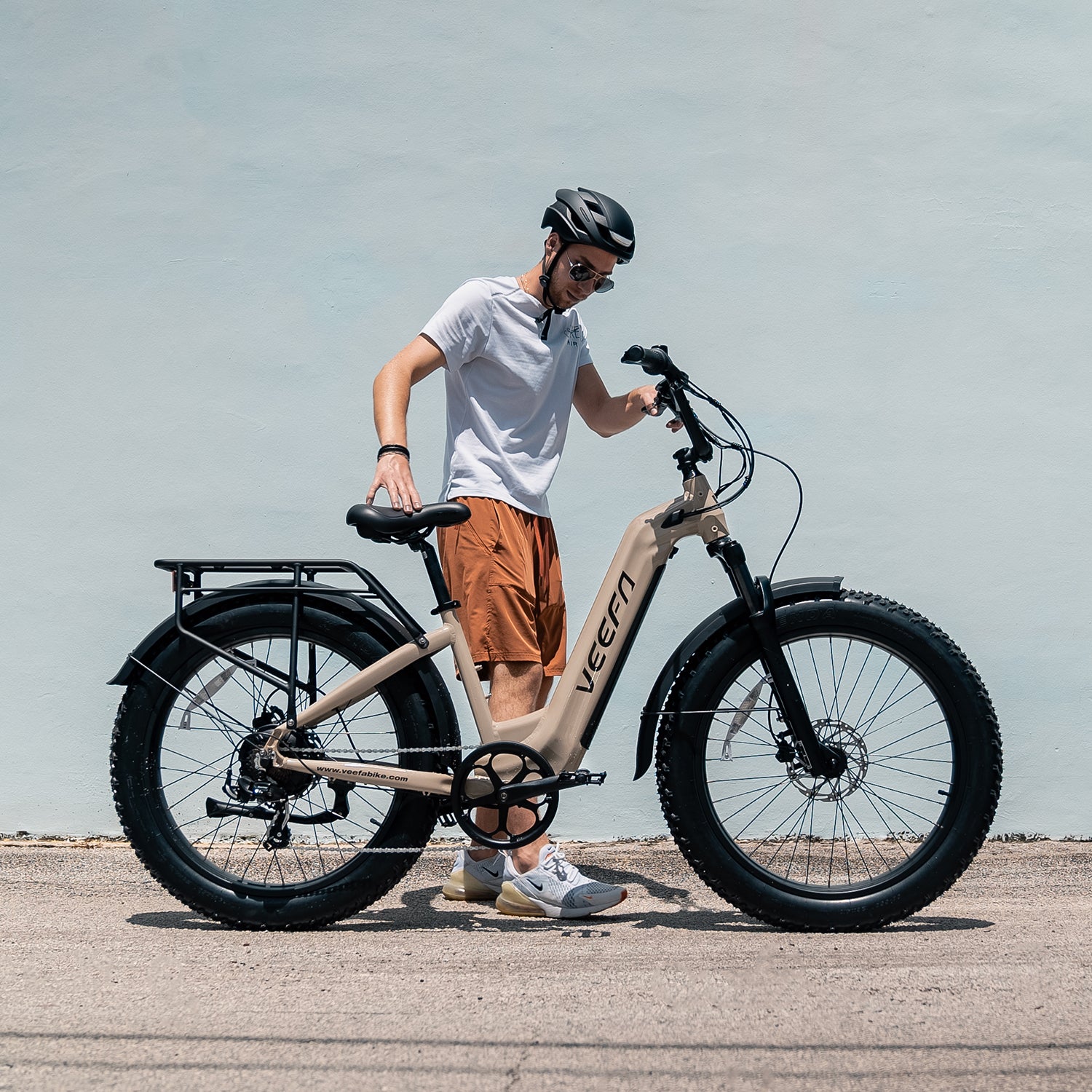

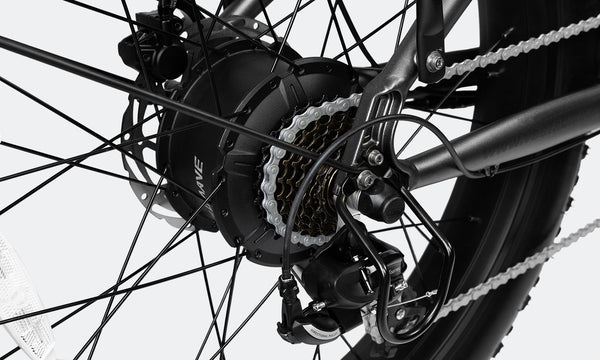

This step-thru electric bike is equipped with a powerful 750W (Peak 1000W) rear motor, capable of reaching a maximum speed of 28MPH with pedal assist and 20MPH with throttle.

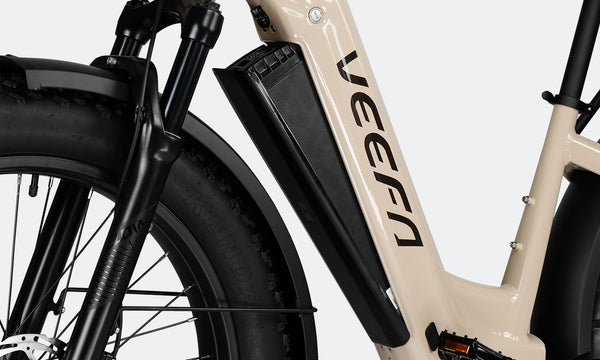

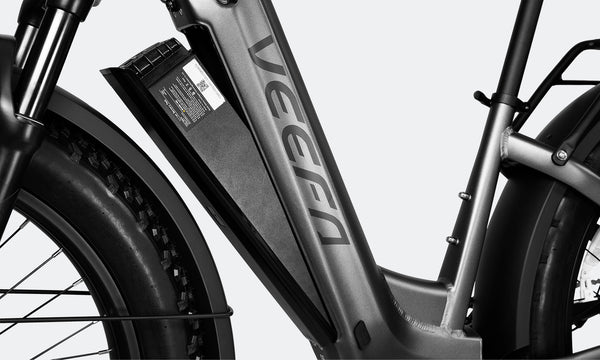

The 48V 13Ah internal lithium-ion battery provides a range of up to 32+ miles per charge with throttle. The removable battery design makes charging more convenient.

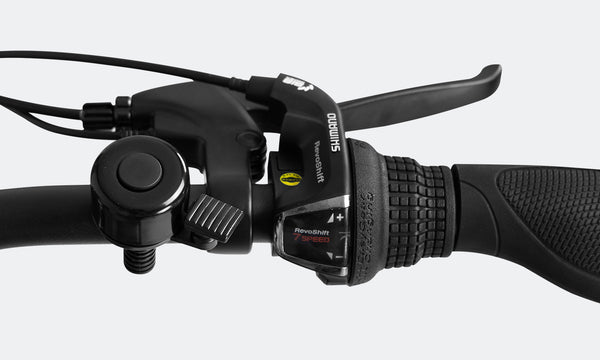

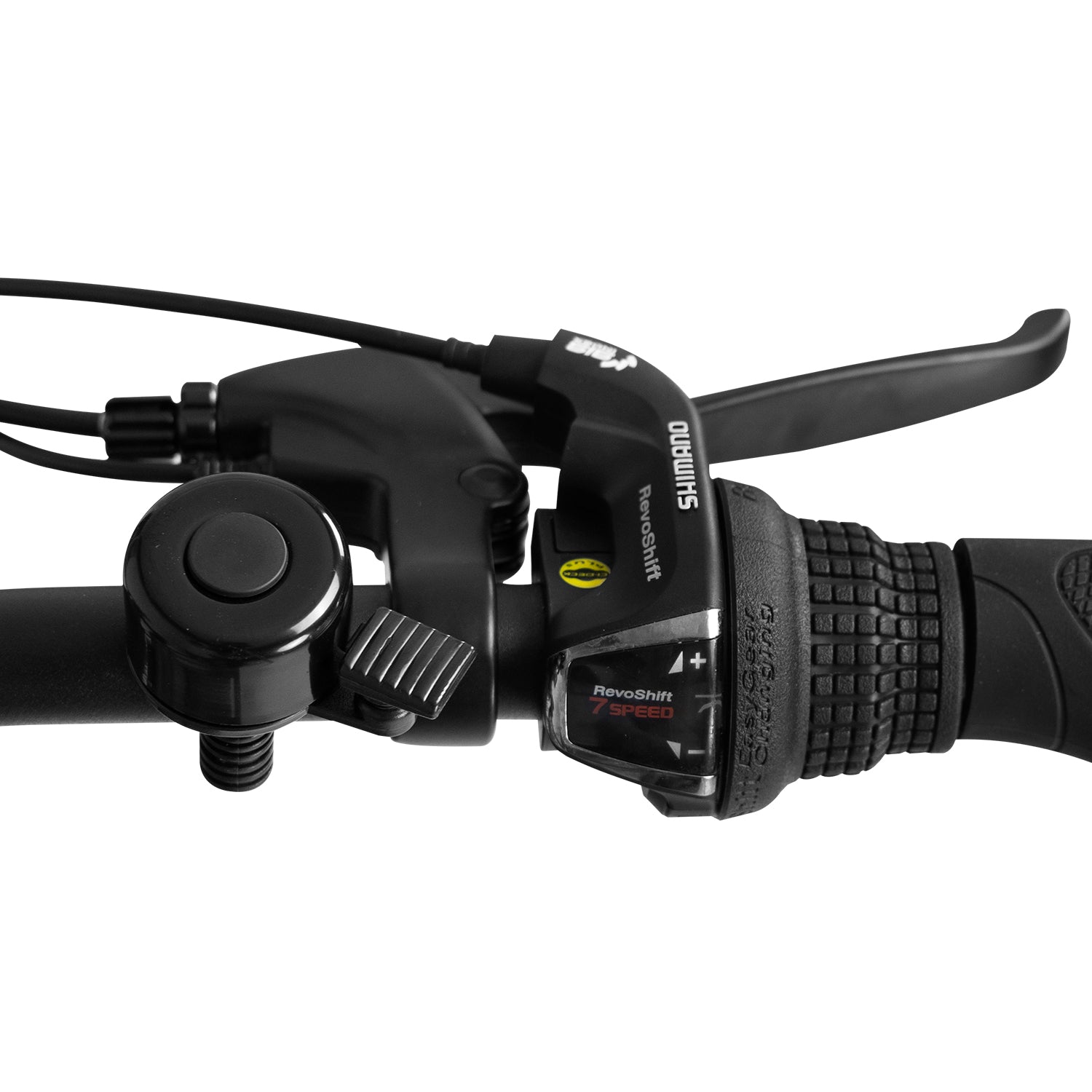

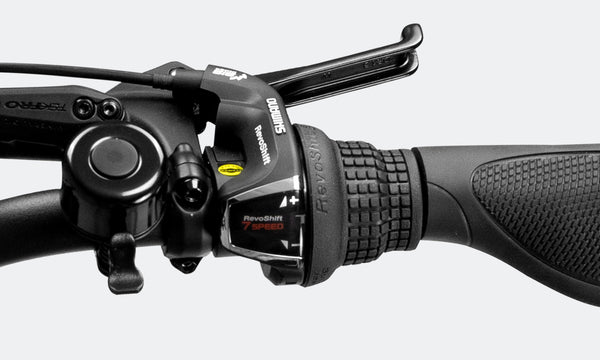

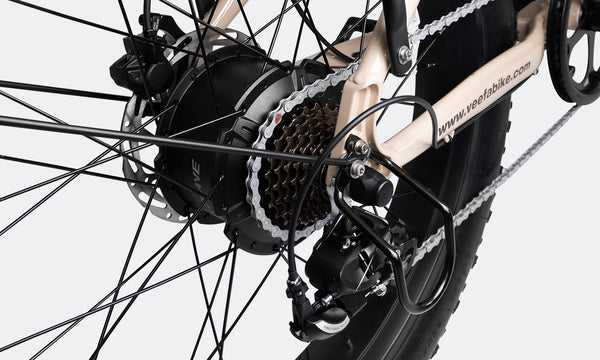

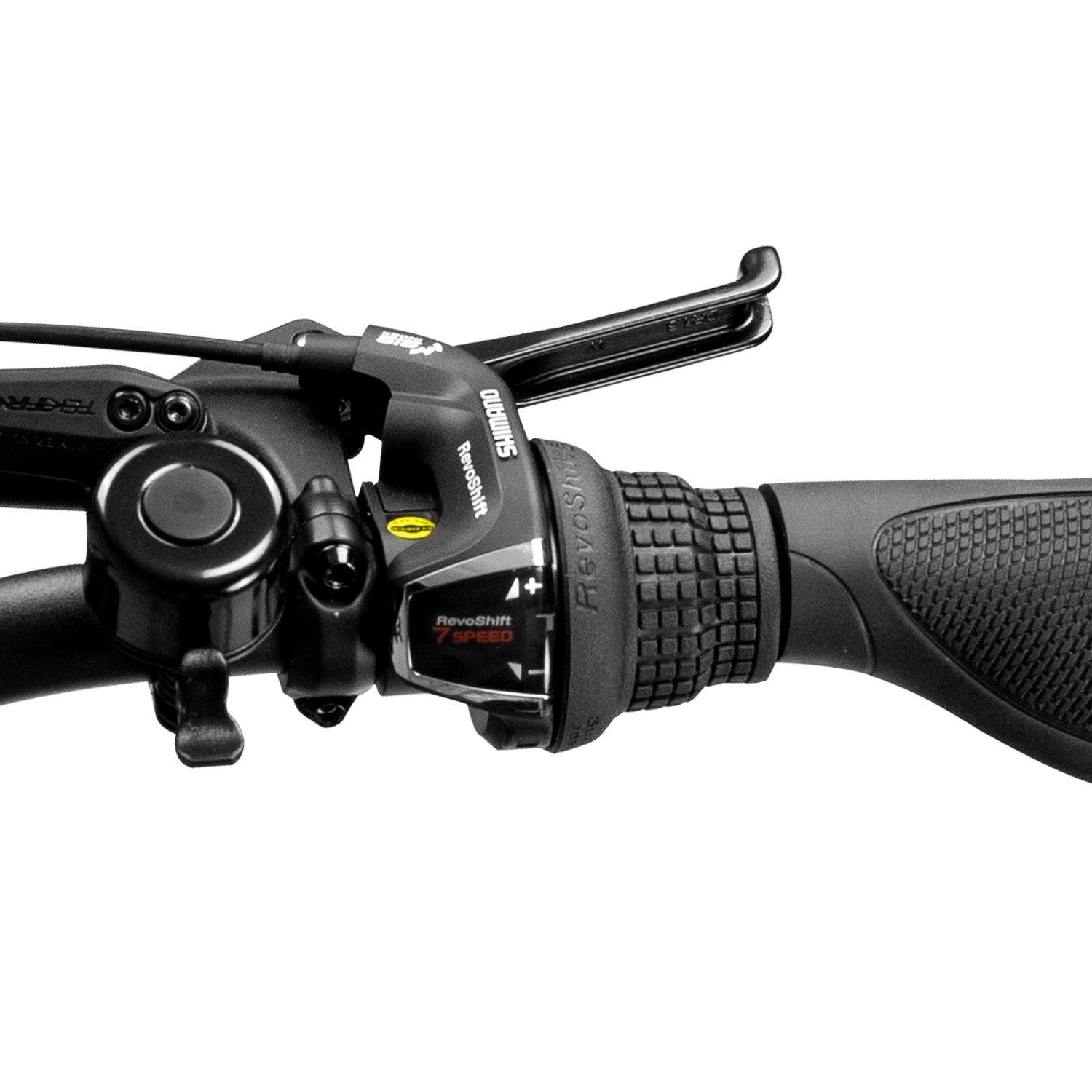

The professional Shimano 7-speed gearing system satisfies all speed requirements for any terrain, offering precision and sensitivity.

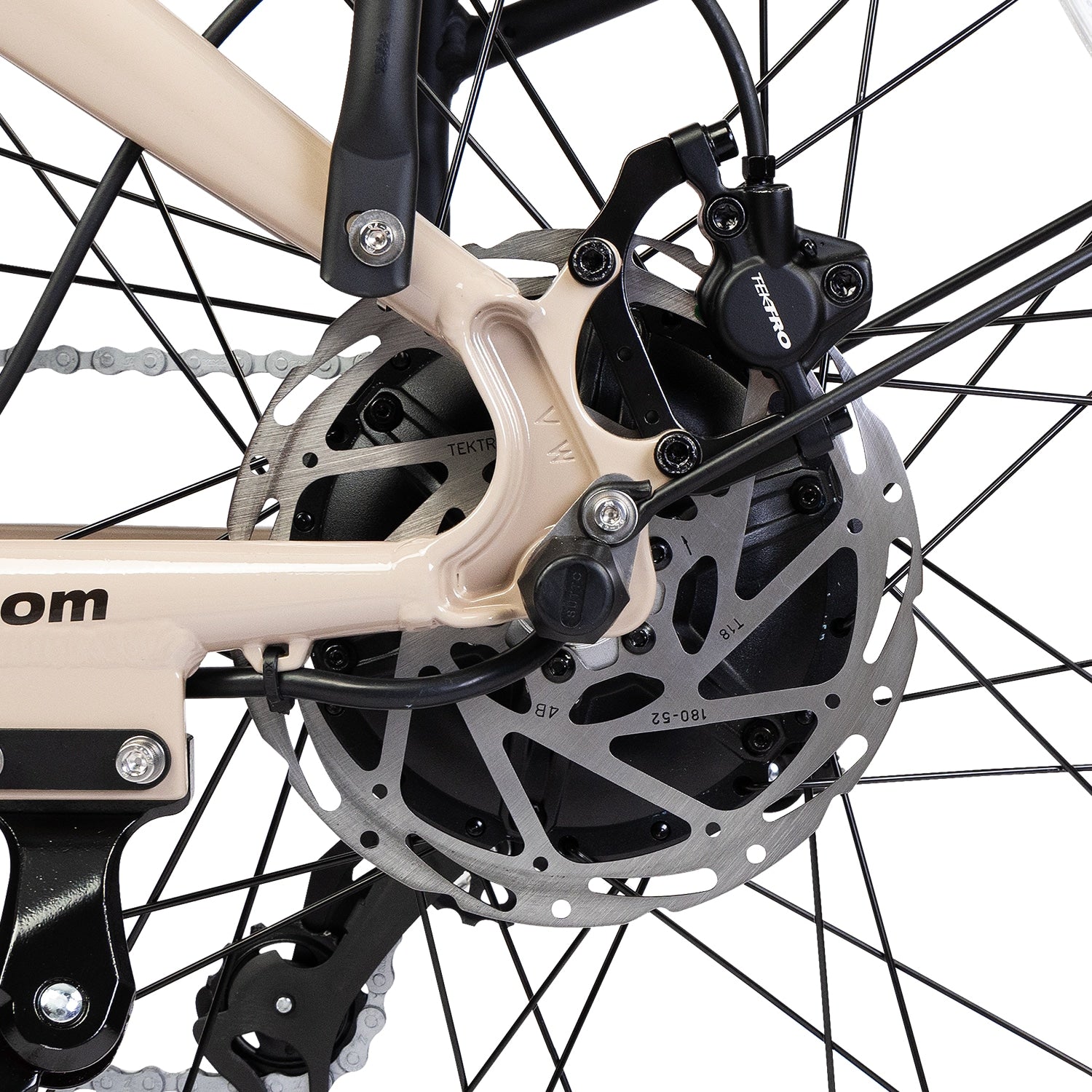

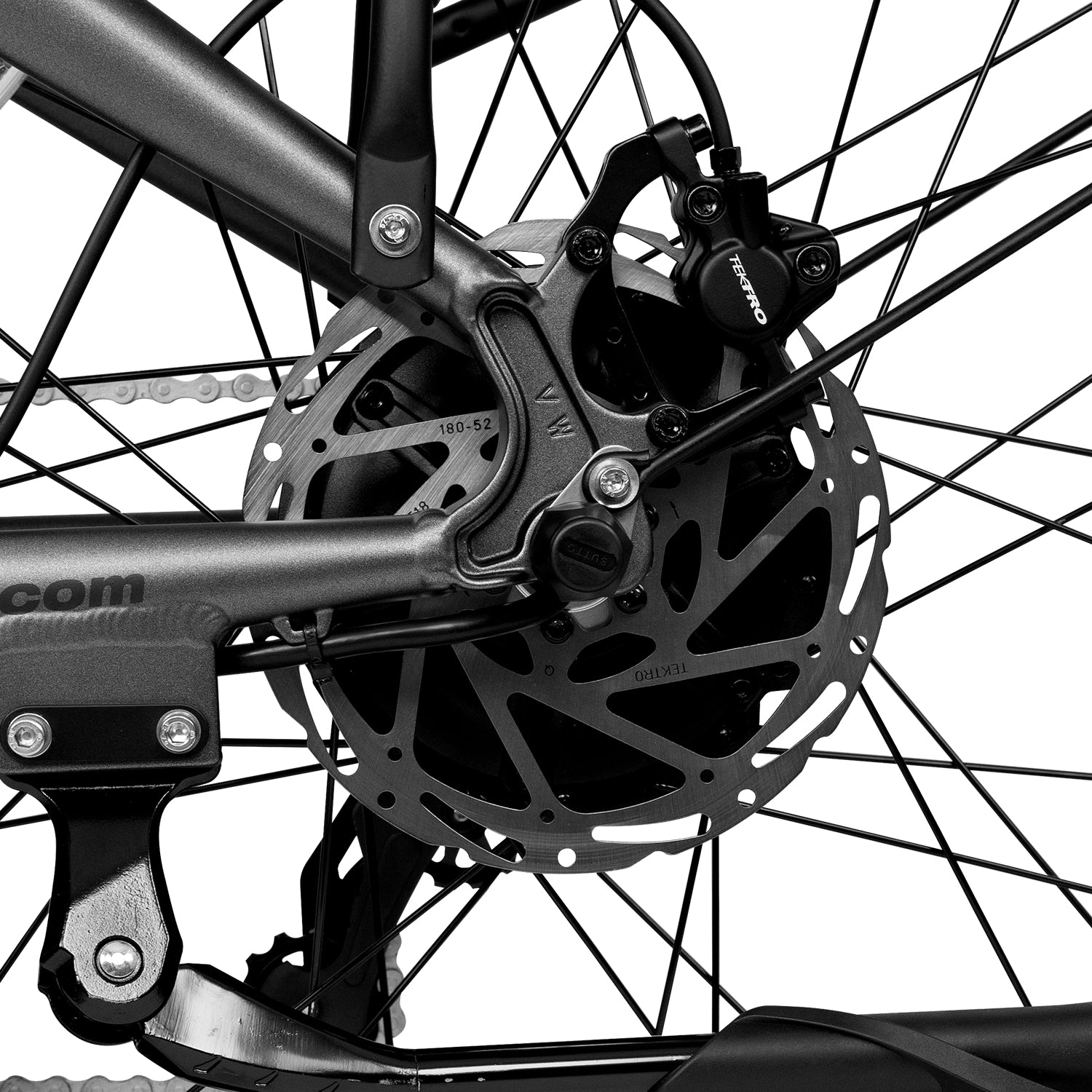

The dual hydraulic disc brake system allows the e-bike to stop quickly and smoothly even at high speeds.

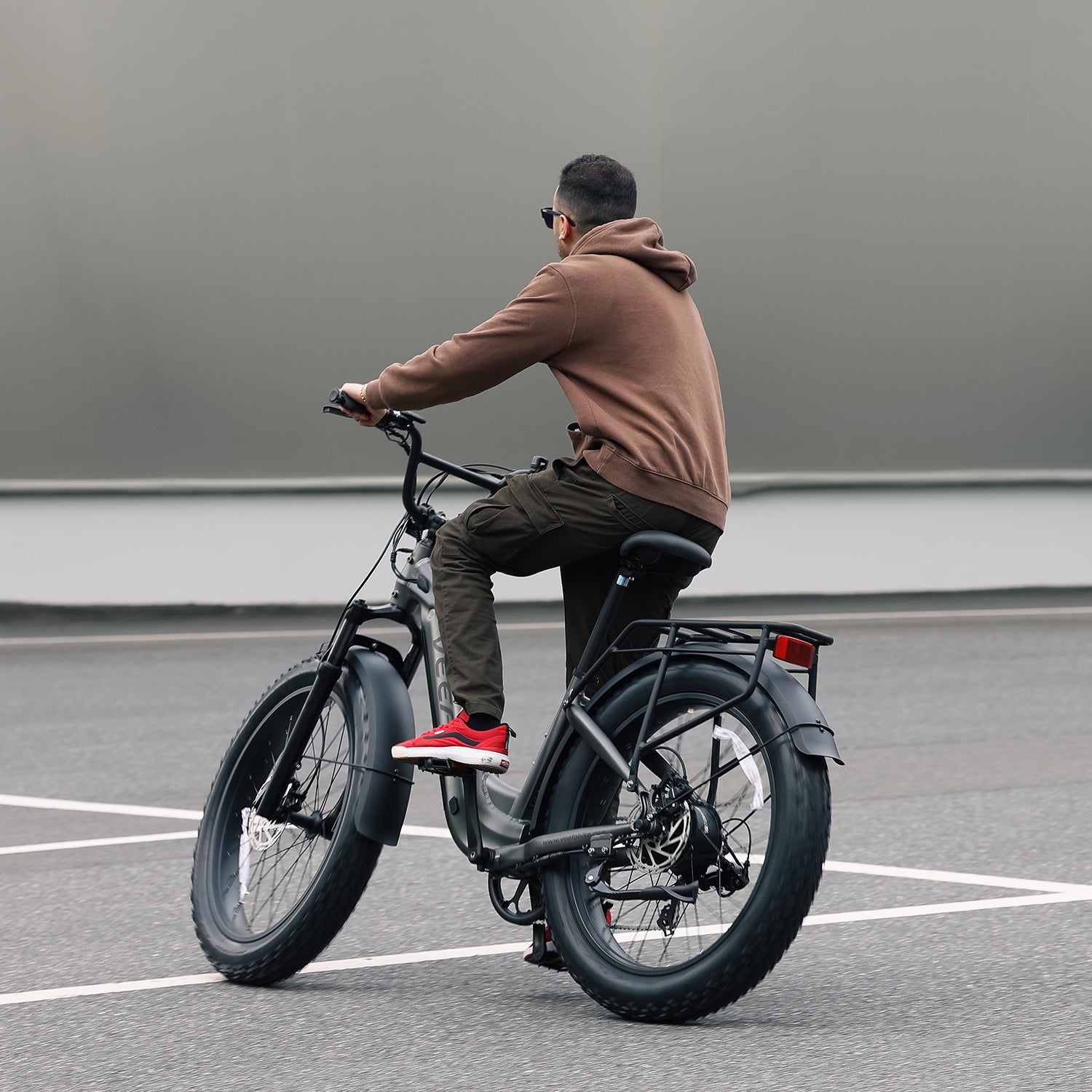

This mountain electric bike features a Kenda 26" x 4.0" fat tire, enabling it to traverse various terrains, including mountains, snow, beaches, and urban areas.

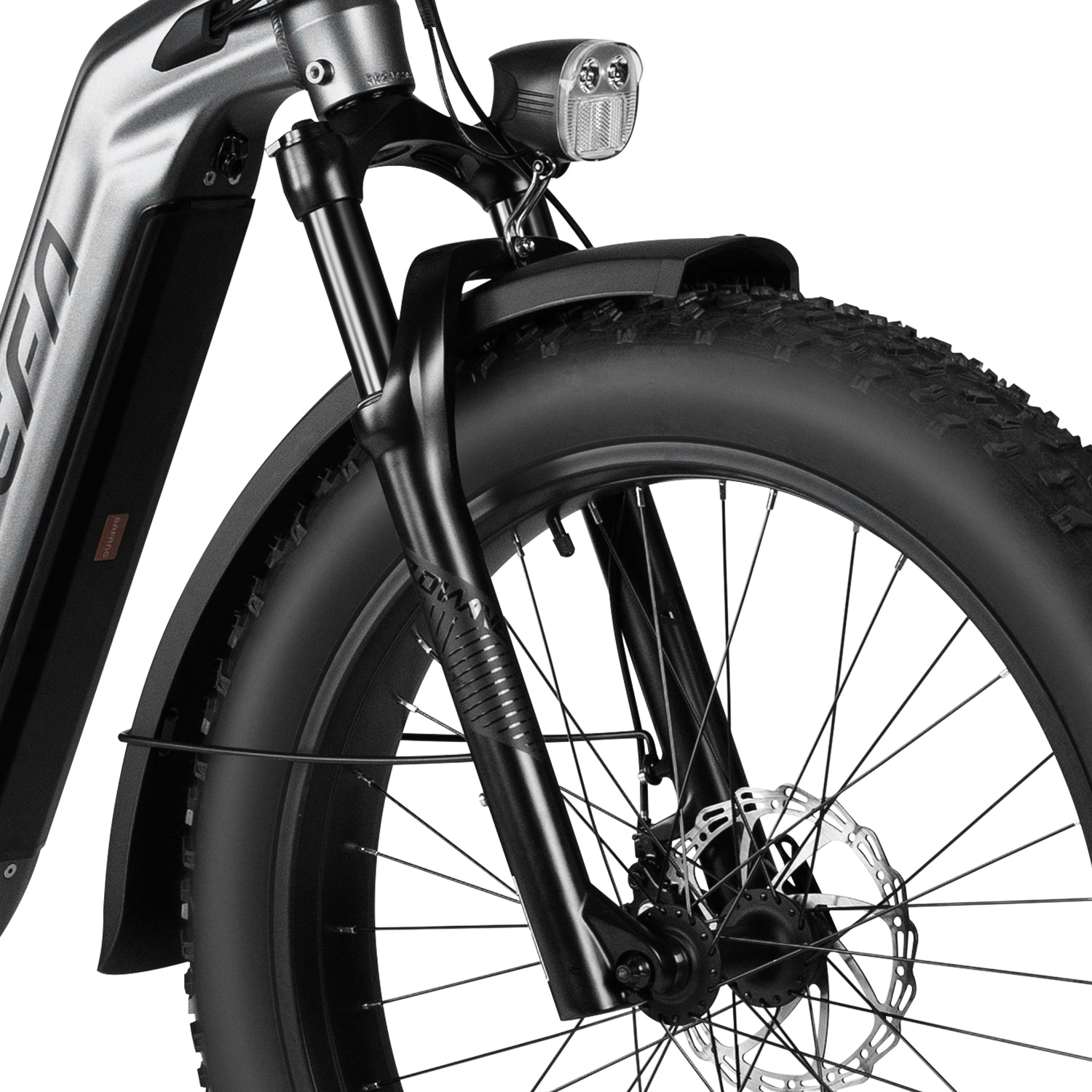

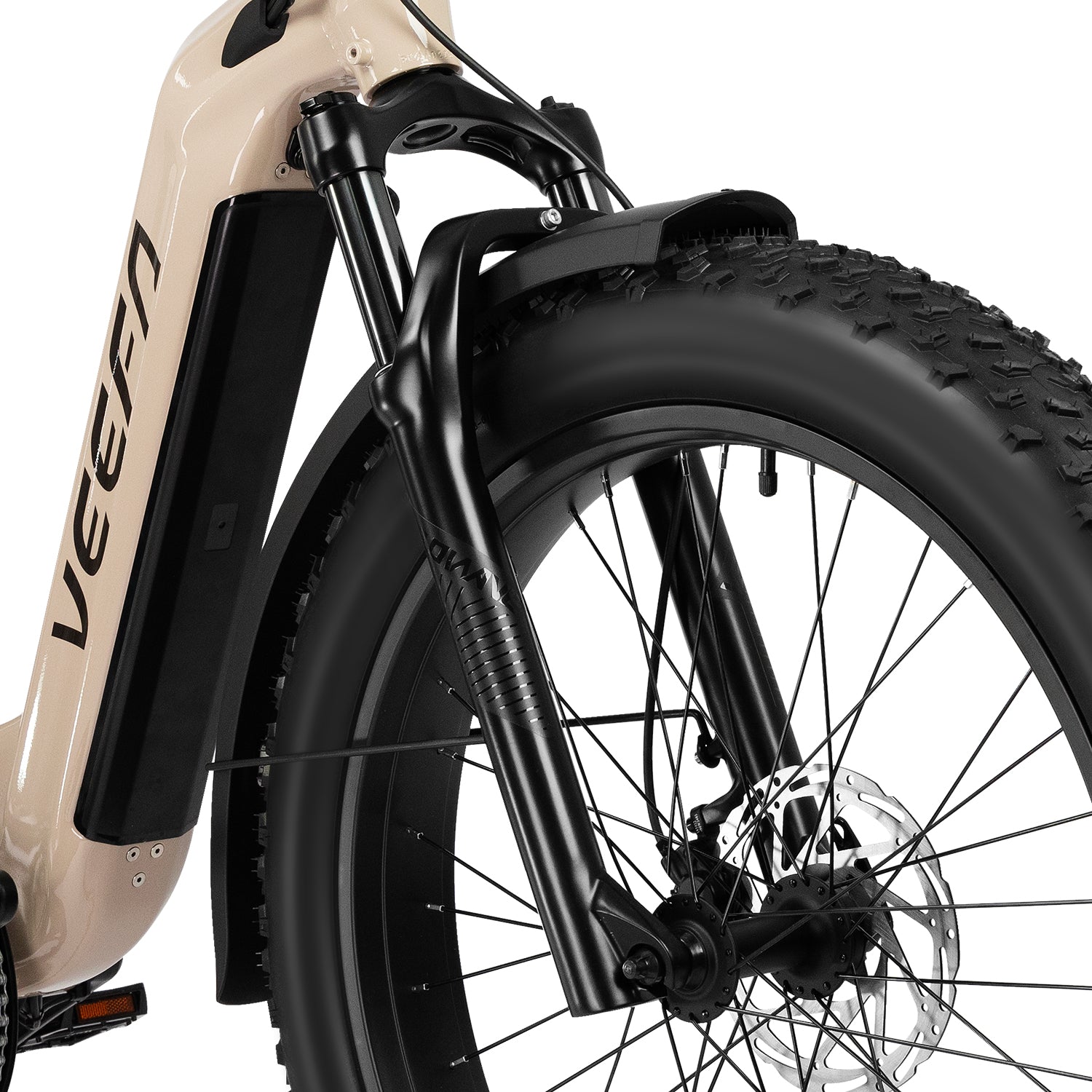

The lockable hydraulic suspension fork effectively absorbs shocks, making it easy to control on off-road or rough terrain.
Customer Reviews
The 26" is large, HEAVY and (no offense) for smaller (less than 5'5") females. Bought one for my wife and even with step thru it was too large to handle. Couldn't use the pedal only and make turns. The Bike handles well, has ample speed and the pedal/electric function is great.
My wife and i love the bikes, I would recommend veefa L1 elec. bikes because they are easy and comfortable to ride and are made well, besides are resonable to buy thanks ken k.
The company is great to work with. So far the bike looks nice for the price paid. I had an minor issue that the company jumped on immediately. I recommend them.
Easy to assemble, very nice-looking and fun to ride!
Timely delivery by fedex, professional packaging with full encasement in semi rigid foam with thick cardboard overlay. Unpacking and assembly took 6 hours. Assembly was detailed with instructions booklet. Tricky on front hub/wheel attachment. Remove shipping axle frame support, knock out axle plug of wheel hub- L&R side to allow permanent axle to slide thru wheel hub. Also remove plastic liner between brake pads to allow wheel rotor to slide in place. I first installed handle bars and adjusted seat hire allowing me to flip the bike upside down to figure out how to insert the front wheel. Directions dont convey this.
That was the only tricky part. Light and backlight computer module easy to hook together. Removed battery and charged in approx. 6 hours. Also not described in directions is installing the derailer bracket. I watched the video several times for proper installation.
Its a nice feature to protect the de-railer.
The bike and all components are above average quality brand names. Frame welds are of very good welding techniques. No misses no cracks.
Very impressive so far. Ill catch up later with the many adjustments to fittment and test ride.
By the way I added: rear basket, phone mount, dog retractable dog leash. Water bottle holder wont work well because it impeads the foot access mounted low where the two frames meet.
